29 September 2016

Ventana Wolfram Pinion Bike Packages


Ventana has expanded the drivetrain options available for their Wolfram trail bike.  After successfully launching the Wolfram model with a Rohloff SPEEDHUB 500/14 internal gear hub and Gates Carbon Drive belt last fall, they are now offering a new version built around the Pinion gear box.  This version carries all the rest of the features of the original: modern trail geometry, large volume "plus"-sized tires, choice of 27.5+ or 29+ wheel size, and Gates Carbon Drive belt compatibility.

Bikes packages are available in two build levels:

  • Signature: $7,790
  • Standard: $6,510

Both packages include a 12-speed Pinion gearbox and Gates Carbon Drive belt system.  9- and 18-speed gearboxes are also available through the semi-customizable build kits options below.

Please contact us at info@cyclemonkey.com or 510-868-1777 for additional information or to place an order.





Ventana Wolfram Pinion frame features

  • Ventana tapered head tube (1-1/8" to 1.5")
  • Ventana proprietary three bolt swinging adjustable dropouts
  • Dedicated frame for Pinion gearbox
  • Belt drive compatible - drive side dropout separates from seat stay to insert belt into rear triangle
  • Dedicated cable routing for Pinion gearbox shift cables and stealth dropper seatposts
  • Can be set up with 10x135mm quick release or 12x142mm through axle rear hub
  • Clearance for 3" wide tires on 50mm rims
  • Sizes: XS, S, M, L, XL, XXL
  • Custom geometry available upon request for additional charge
  • Included color choices: Carbon Black or Ferrari Yellow
  • Additional colors available for upgrade charge (see paint options below)

Pinion Gearbox Highlight

  • 12-sped gearbox with 600% overall change in gear ratio offers more range as most three by nine mountain bike derailleur systems.
  • Proven internals provide 50,000+ miles of reliable service.
  • Shifting mechanism is completely protected within the gearbox housing and sealed from the elements.
  • Shift reliably in sand, snow, mud, and other riding conditions that are harsh on traditional drivetrains.
  • Shift between gears at any time, even when coasting or while stopped.
  • Gearbox needs no maintenance other than a recommended annual oil change.


Build Kit Details



Upgrades and Options
  • Custom Paint: $50 upcharge
Titanium
Champagne
Cosmic Orange
Gloss Black
Grinch Green
Team Blue Sparkle
Jail House Blue
Mercedes Blue
Sky White

Superdust

Mango Tango
  • Candy Paint: $90 upcharge
Candy Blue
Candy Purple
Candy Raspberry
Candy Red
Candy Teal




  • Fork Options:

Manitou Magnum
Boost Axle
(27.5" or 29")
Signature: -$267
Standard: +$85

Rock Shox RS-1
Predictive Steering Axle
Hub Included (29" Only)
Signature: +$892
Standard: +$1243

Fox 34 Float
Boost Axle
(27.5" Only)
Signature: -$223
Standard: +$129
    Rock Shox Pike
    Boost Axle
    (27.5" or 29")
    Signature: Stock Option
    Standard: +$352
    Rock Shox Yari
    Boost Axle
    (27.5" or 29")
    Signature: -$352
    Standard: Stock Option
    • Saddle Options:
    WTB Race: Pure (pictured),
    Volt-142, or Rocket-150 models
    Signature:  -$89
    Standard: Stock Option
    WTB Pro: Volt-142 (pictured),  Pure, Silverado or Rocket-150 models
    Signature: -$66
    Standard: +$23
    WTB Team: Silverado (pictured), Pure, Volt-142 or Rocket-150 models
    Signature: +$3
    Standard: +$92
    611 MTB Active, Cro-Mo
    Signature: Stock Option
    Standard: +$89
    Selle Anatomica Titanico NSX
    Signature: +$37
    Standard: +$126
    • Seatpost Options:
    Race Face Ride
    Signature: -$426
    Standard: -$281
    Thomson Elite
    Straight or 16mm Setback
    Signature: -$368
    Standard: -$223
    Cane Creek Thudbuster
    No Longer Availble
    Signature: --
    Standard: --
    Syntace Hi-Flex
    Signature:  -$222
    Standard: -$77
    Rock Shox Reverb Stealth
    Signature: +$150
    Standard: +$135
    Thomson Dropper Covert
    Signature: Stock Option
    Standard: +$145
    • Handlebar Options:
    Race Face Aeffect
    Signature: -$42
    Standard: Stock Option
    Thomson AM Alloy
    Signature: Stock Option
    Standard: +$42
    Salsa Bend 2
    Signature: -$20
    Standard: +$22

    Jeff Jones Loop H-Bar
    Signature: +$54
    Standard: +$96
    Thomson AM Carbon
    Signature: +$69
    Standard: +$112

    • Headset Options:

    Cane Creek 40 Mix-Tapered
    Signature: -$55
    Standard: Stock Option
    Hope Pick'n'Mix
    Signature: Stock Option
    Standard: +$55
    Chris King Inset
    Signature: +$58
    Standard: +$113
    • Brake Options:
    • Magura MT2
      Signature: -$111
      Standard: Stock Option
      Magura MT4
      Signature: Stock Option
      Standard: +$111
      Magura MT5
      Signature: +$74
      Standard: +$185
      Magura MT6
      Signature: +$203
      Standard: +$314
      Magura MT7
      Signature: +$295
      Standard: +$406
      Magura MT8
      Signature: +$388
      Standard: +$498
      Avid BB7 - Speed Dial 7 Set
      Signature: -$112
      Standard: Stock Option
      Spyke Brake - Lever Set
      Signature: -$59
      Standard: +$52












  • Front Hub Options:

  • SRAM XO
    Boost Axle
    Signature & Standard
    Upgrade: +$59
    Industry 9 Torch
    Boost Axle
    Signature & Standard
    Upgrade: +$77
    Hope Pro II
    Boost Axle
    Signature & Standard
    Stock Option

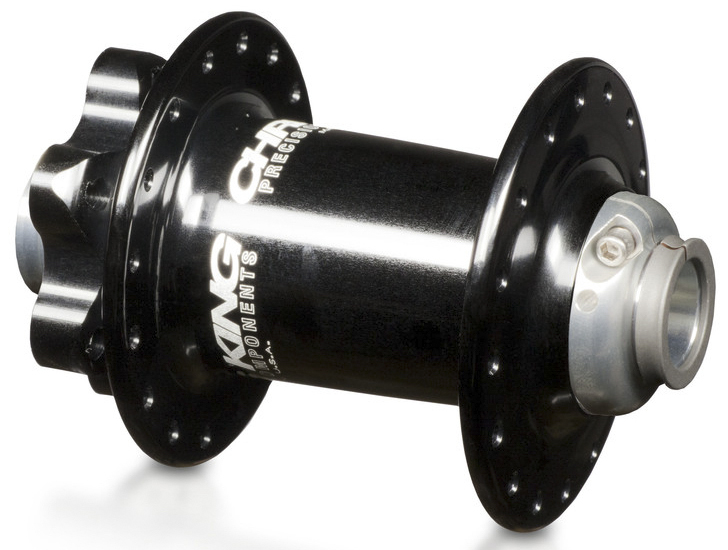

    Chris King ISO
    Boost Axle
    Signature & Standard
    Upgrade: +$95












  • Rear Hub Options:
  • Chris King ISO Disc Single Speed
    12x142mm axle
    Signature: Stock Option
    Standard: +$200
  • Industry 9 Torch Single Speed
  • 12x142mm axle
  • Signature: -$100
  • Standard: +100
  • Hope Pro 4 Single Speed
    12x142mm axle
    Signature: -$200
    Standard: Stock Option

  • Chris King ISO Disc Single Speed
    12x142mm axle
    Signature: Stock Option
    Standard: +$199
    Hope Pro 4 Single Speed
    12x142mm axle
    Signature & Standard
    Stock Option











  • Rim Options:

  • WTB Scraper
    45mm
    Signature & Standard
    Upgrade: +$69
    Sun MuleFut 50SL
    50mm
    Signature & Standard
    Stock Option
    Velocity Dually
    45mm
    Signature & Standard
    Upgrade: +$18
    Carbon Rim
    50mm
    Signature & Standard
    Upgrade: +$400












  • Tire Options:

  • Maxxis Chronicle 120tpi
    (27.5 or 29")
    Signature: Stock Option
    Standard: +$104
    Panaracer Fat B Nimble
    (27.5 or 29")
    Signature: -$104
    Standard: -$25
    Vittoria Bomboloni TNT
    (27.5 or 29")
    Signature: Stock Option
    Standard: +$104
    Surly Dirt Wizard 60tpi
    (27.5 or 29")
    Signature: -$80
    Standard: +$Stock Option
    WTB Trail Boss
    (27.5" Only)
    Signature: -$113
    Standard: Stock Option












  • Nipple Options:


  • Brass: Black, Silver
    Signature & Standard
    Stock Option

    Blue, Gold, Silver, Green, Purple, Black, Red
    Signature & Standard
    Upgrade: +$18
